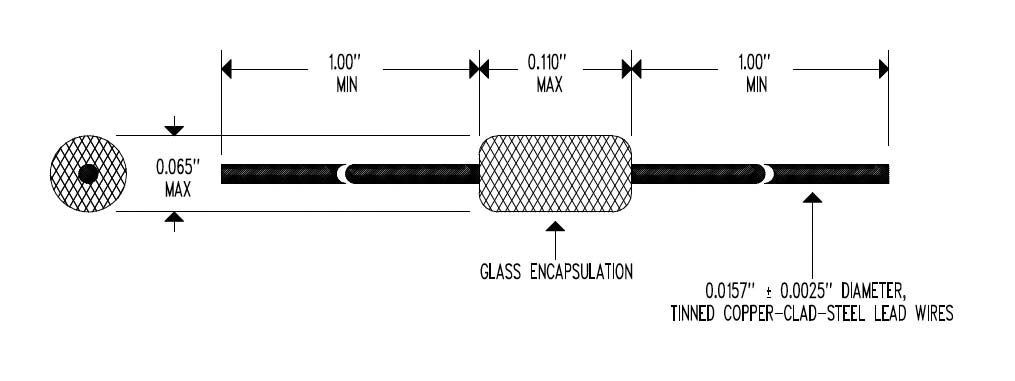

DO-34 Standard Series ED34 Glass Encapsulated Thermistor
Like our ED35 Series and ED41 Series, EI Sensor’s ED34 glass encapsulated thermistor series offer customers excellent long-term stability and reliability but is smaller in size for applications where space is limited. The temperature sensors operate from -55°C to +300°C. Industries such as Building Automation, Industrial Controls, Appliances and Food Processing and Handling utilize this sensor for many temperature measurement and control applications.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- High temperature capability to +300°C
- Hermetically sealed glass package
- Low cost
- Excellent long-term stability
- Non-standard resistance values and tolerances
- Tape and reel packaging available
Other Package Sizes (NTC Thermistors):
ready to buy? find a distributor
PRODUCT SPECS
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 1,000 | 5 | 6 | 2952 | Drawing | R-T Data | ED3406J102 |
| 1,000 | 10 | 6 | 2952 | Drawing | R-T Data | ED3406K102 |
| 2,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3418F202 |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | ED3418J202 |
| 2,500 | 1 | 18 | 3417 | Drawing | R-T Data | ED3418F252 |
| 2,500 | 5 | 18 | 3417 | Drawing | R-T Data | ED3418J252 |
| 3,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3418F302 |
| 3,000 | 5 | 18 | 3417 | Drawing | R-T Data | ED3418J302 |
| 5,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3418F502 |
| 5,000 | 10 | 18 | 3417 | Drawing | R-T Data | ED3418J502 |
| 10,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3418F103 |
| 10,000 | 5 | 18 | 3417 | Drawing | R-T Data | ED3418J103 |
| 10,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3430F103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3430J103 |
| 30,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3430F303 |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3430J303 |
| 50,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3430F503 |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3430J503 |
| 68,000 | 1 | 42 | 3988 | Drawing | R-T Data | ED3442F683 |
| 100,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3430F104 |
| 100,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3430J104 |
| 100,000 | 1 | 42 | 3988 | Drawing | R-T Data | ED3442F104 |
| 100,000 | 5 | 42 | 3988 | Drawing | R-T Data | ED3442J104 |
| 250,000 | 1 | 54 | 4142 | Drawing | R-T Data | ED3454F254 |
| 250,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3454J254 |
| 330,000 | 1 | 54 | 4142 | Drawing | R-T Data | ED3454F334 |
| 330,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3454J334 |
