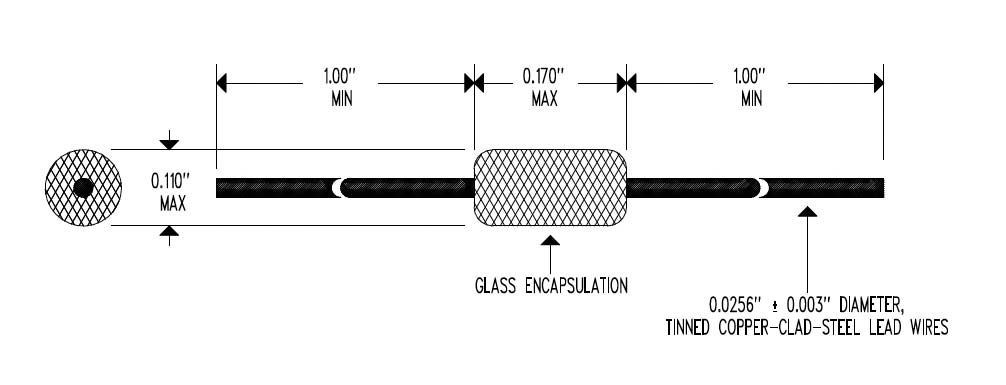

ED41 Glass Encapsulated, DO-41 Axial Leaded Thermistors
EI Sensor’s DO-41 glass encapsulated thermistors offer customers a slightly larger glass body profile as compared to our DO-35 series. Hermetically sealed, the DO-41 temperature sensor has an operating temperature range from -55°C to +300°C and excellent long-term stability. The sensors are ideally suited for severe environmental or thermal conditions. Industries such as Building Automation, Industrial Controls, Appliances and Food Processing and Handling utilize this sensor for temperature measurement and control applications.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- High temperature capability to +300°C
- Hermetically sealed glass package
- Low cost
- Excellent long-term stability
- Non-standard resistance values and tolerances
- Tape and reel packaging available
Other Package Sizes (NTC Thermistors):
ready to buy? find a distributor
PRODUCT SPECS
500 Ω - 2,800 Ω
2,800 Ω - 10,000 Ω
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) (0-50°C) | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 100 | 5 | 6 | 2952 | Download | R-T Data | ED4106J101 |
| 100 | 10 | 6 | 2952 | Download | R-T Data | ED4106K101 |
| 250 | 5 | 6 | 2952 | Download | R-T Data | ED4106J251 |
| 250 | 10 | 6 | 2952 | Download | R-T Data | ED4106K251 |
| 470 | 1 | 18 | 3417 | Download | R-T Data | ED4118F471 |
| 470 | 5 | 18 | 3417 | Download | R-T Data | ED4118J471 |
| 500 | 1 | 18 | 3417 | Download | R-T Data | ED4118F501 |
| 500 | 5 | 18 | 3417 | Download | R-T Data | ED4118J501 |
| 1,000 | 1 | 18 | 3417 | Download | R-T Data | ED4118F102 |
| 1,000 | 5 | 18 | 3417 | Download | R-T Data | ED4118J102 |
| 2,000 | 1 | 30 | 3892 | Download | R-T Data | ED4130F202 |
| 2,000 | 5 | 30 | 3892 | Download | R-T Data | ED4130J202 |
| 2,252 | 1 | 30 | 3892 | Download | R-T Data | ED4130F222 |
| 2,252 | 5 | 30 | 3892 | Download | R-T Data | ED4130J222 |
| 2,500 | 1 | 30 | 3892 | Download | R-T Data | ED4130F252 |
| 2,500 | 5 | 30 | 3892 | Download | R-T Data | ED4130J252 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) (0-50°C) | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 2,700 | 1 | 30 | 3892 | Download | R-T Data | ED4130F272 |
| 2,700 | 5 | 30 | 3892 | Download | R-T Data | ED4130J272 |
| 3,000 | 1 | 30 | 3892 | Download | R-T Data | ED4130F302 |
| 3,000 | 5 | 30 | 3892 | Download | R-T Data | ED4130J302 |
| 5,000 | 1 | 30 | 3892 | Download | R-T Data | ED4130F502 |
| 5,000 | 5 | 30 | 3892 | Download | R-T Data | ED4130J502 |
| 10,000 | 1 | 42 | 3988 | Download | R-T Data | ED4142F103 |
| 10,000 | 5 | 42 | 3988 | Download | R-T Data | ED4142J103 |
| 10,000 | 1 | 54 | 4142 | Download | R-T Data | ED4154F103 |
| 10,000 | 5 | 54 | 4142 | Download | R-T Data | ED4154J103 |
| 20,000 | 1 | 54 | 4142 | Download | R-T Data | ED4154F203 |
| 20,000 | 5 | 54 | 4142 | Download | R-T Data | ED4154J203 |
| 30,000 | 1 | 54 | 4142 | Download | R-T Data | ED4154F303 |
| 30,000 | 5 | 54 | 4142 | Download | R-T Data | ED4154J303 |
| 33,000 | 1 | 54 | 4142 | Download | R-T Data | ED4154F333 |
| 33,000 | 5 | 54 | 4142 | Download | R-T Data | ED4154J333 |
