Thermistors & Thermistor Probes
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

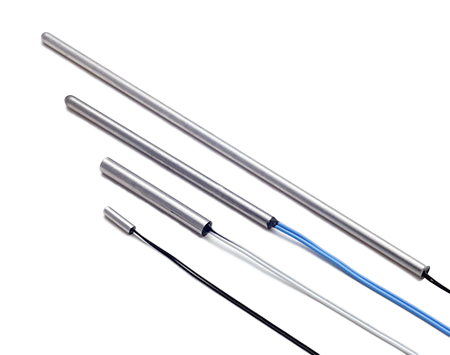

Straight THERMISTOR PROBES
EI Sensor’s straight thermistor probes are available in many styles and materials. We offer probes with flat or radius tips as well as tapered. Materials include aluminum, stainless steel and copper. These versatile probe assemblies have operating temperature up to 300°C and are used throughout industries such as Industrial Electronics, Pool/Spa, Consumer Electronics and Food Handling.
The thermistor probes shown are just some of the many available. Whether you need different styles, sizes, materials, electrical properties…we can help. Contact our design engineers at sales@ei-sensor.com for assistance.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
ready to buy? find a distributor
PRODUCT SPECS
Nature's Symphony
Nature's Symphony
Nature's Symphony
| Resistance Ohms @25°C | Accuracy/ Tolerance | Probe Assembly Highlights | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|
| 10,000 | ±1% | Moisture Resistant 0.250" Dia Stainless Steel PVC Insulated Wire 105°C Max Operating Temp | Drawing | R-T Data | X | ETP10002 |
| 10,000 | ±5% | Moisture Resistant 0.250" Dia Stainless Steel PVC Insulated Wire 105°C Max Operating Temp | Drawing | R-T Data | ETP10022 | |
| 10,000 | ±0.2°C (0 to +70°C) | 0.188" Dia Stainless Steel Teflon Insulated Wire 150°C Max Operating Temp | Drawing | R-T Data | X | ETP10004 |
| 10,000 | ±1% | 0.188" Dia Stainless Steel Teflon Insulated Wire 150°C Max Operating Temp | Drawing | R-T Data | ETP10034 | |
| 10,000 | ±5% | 0.188" Dia Stainless Steel Teflon Insulated Wire 150°C Max Operating Temp | Drawing | R-T Data | ETP10035 | |
| 10,000 | ±0.2°C (0 to +70°C) | 0.125" Dia Stainless Steel Teflon Insulated Wire 150°C Max Operating Temp | Drawing | R-T Data | X | ETP10003 |
| 10,000 | ±1% | 0.125" Dia Stainless Steel Teflon Insulated Wire 150°C Max Operating Temp | Drawing | R-T Data | ETP10027 | |
| 10,000 | ±5% | 0.125" Dia Stainless Steel Teflon Insulated Wire 150°C Max Operating Temp | Drawing | R-T Data | ETP10028 | |
| 10,000 | ±1% | 0.250" Dia Stainless Steel Glass Braid Insulated, Jacketed Cable 300°C Max Operating Temp | Drawing | R-T Data | ETP10065 | |
| 10,000 | ±1% | 0.250" Dia Stainless Steel Glass Braid Insulated, Jacketed Cable 300°C Max Operating Temp | Drawing | R-T Data | ETP10066 | |
| 10,000 | ±1% | Moisture Resistant 0.177" Dia Aluminum XLPE Insulated Wire 150°C Max Operating Temp | Drawing | R-T Data | ETP10081 |
