EFT Thin Film NTC Thermistors

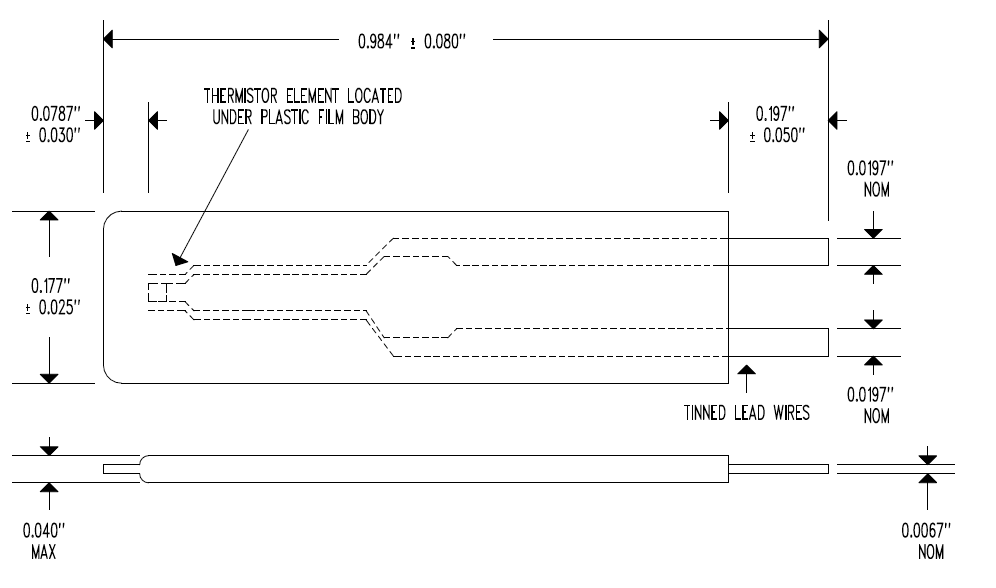

EI Sensor’s EFT series thin film thermistors are a great surface temperature sensing option for applications where space is limited. The thermistor has a very low profile of 0.04″ max thickness yet offers easy solderability and excellent long-term reliability. Applications include battery packs, mobile devices, IT equipment and wearable technologies.

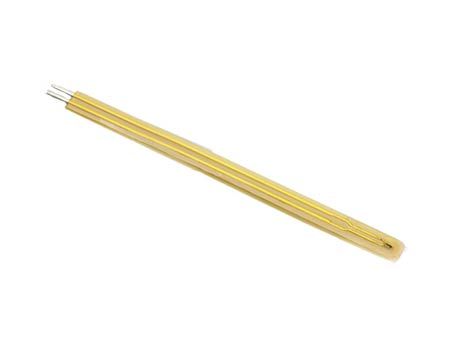

NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves  the right to change product images at any time without notice.

Features

  • Rated up to +90°C
  • Low profile
  • Easy solderability
  • Fast thermal response

ready to buy? find a distributor

PRODUCT SPECS

Resistance Ohms @25°C Resistance Tol. ± % Beta (K) 25°C - 50°C Download View Part Number
10,000 1 3,380 Drawing R-T Data EFT17F103
10,000 1 3,380 Drawing R-T Data EFT17F103E
10,000 1 3,950 Drawing R-T Data EFT32F103
10,000 1 3,950 Drawing R-T Data EFT32F103A
50,000 1 3,950 Drawing R-T Data EFT32F503
50,000 1 3,950 Drawing R-T Data EFT32F503A
100,000 1 3,950 Drawing R-T Data EFT32F104
100,000 1 3,950 Drawing R-T Data EFT32F104A
