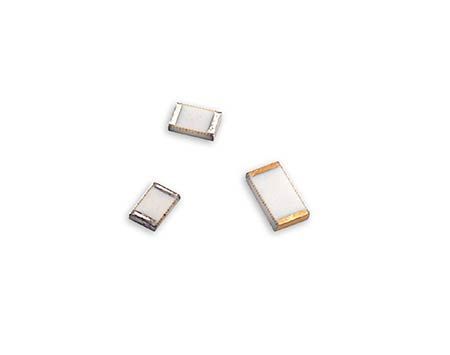

ERTS Surface Mount RTDs
EI Sensor’s RTD Platinum surface mount temperature sensors feature contacts on one side and are optimal for applications with limited space. The SMT RTDs offer different plating options for use in a variety of assembly processes such as reflow-soldering, bonding or welding.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- TCR = 3,850 ppm/°C
- Fast response time
- Low self-heating
- Surface mountable
- Excellent long-term stability
- Packaging options show on drawing
OTHER RTDs:
ready to buy? find a distributor
PRODUCT SPECS

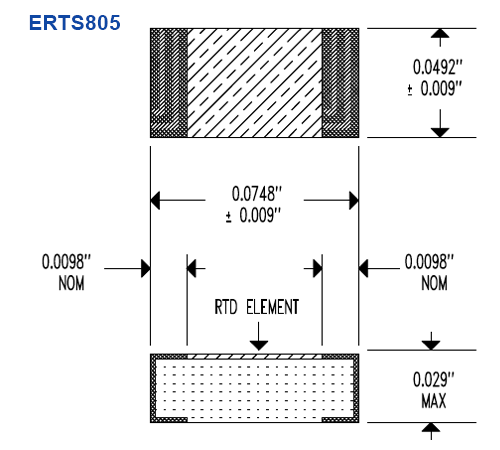

ERTS805

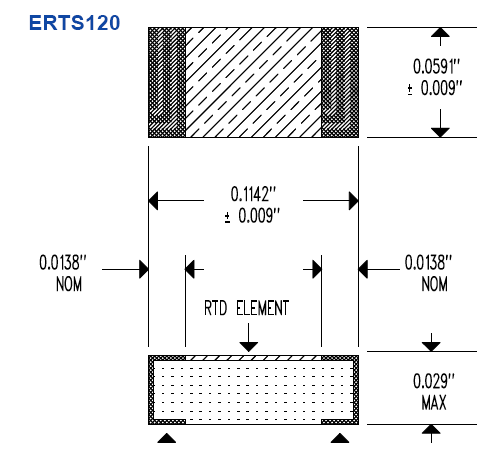

ERTS120
| Resistance Ohms @0°C | Resistance Tol. ± % @ 0°C | Accuracy @ 0°C | IEC 60751 Accuracy Class | Operating Temperature Range | Terminations | Download | View | Part Number |
|---|---|---|---|---|---|---|---|---|
| 100 | 0.06 | ±0.15°C | F 0.15 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS8052A101A |
| 100 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS8052A101B |
| 100 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS8052A101C |
| 100 | 0.12 | ±0.30°C | F 0.3 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS8052B101A |
| 100 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS8052B101B |
| 100 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS8052B101C |
| 500 | 0.06 | ±0.15°C | F 0.15 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS8052A501A |
| 500 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS8052A501B |
| 500 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS8052A501C |
| 500 | 0.12 | ±0.30°C | F 0.3 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS8052B501A |
| 500 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS8052B501B |
| 500 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS8052B501C |
| 1,000 | 0.06 | ±0.15°C | F 0.15 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS8052A102A |
| 1,000 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS8052A102B |
| 1,000 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS8052A102C |
| 1,000 | 0.12 | ±0.30°C | F 0.3 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS8052B102A |
| 1,000 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS8052B102B |
| 1,000 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS8052B102C |
| Resistance Ohms @0°C | Resistance Tol. ± % @ 0°C | Accuracy @ 0°C | IEC 60751 Accuracy Class | Operating Temperature Range | Terminations | Download | View | Part Number |
|---|---|---|---|---|---|---|---|---|
| 100 | 0.06 | ±0.15°C | F 0.15 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS1202A101A |
| 100 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS1202A101B |
| 100 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS1202A101C |
| 100 | 0.12 | ±0.30°C | F 0.3 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS1202B101A |
| 100 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS1202B101B |
| 100 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS1202B101C |
| 500 | 0.06 | ±0.15°C | F 0.15 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS1202A501A |
| 500 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS1202A501B |
| 500 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS1202A501C |
| 500 | 0.12 | ±0.30°C | F 0.3 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS1202B501A |
| 500 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS1202B501B |
| 500 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS1202B501C |
| 1,000 | 0.06 | ±0.15°C | F 0.15 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS1202A102A |
| 1,000 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS1202A102B |
| 1,000 | 0.06 | ±0.15°C | F 0.15 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS1202A102C |
| 1,000 | 0.12 | ±0.30°C | F 0.3 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS1202B102A |
| 1,000 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Solder Plated | Drawing | R-T Data | ERTS1202B102B |
| 1,000 | 0.12 | ±0.30°C | F 0.3 | -50 to +250°C | Gold Plated | Drawing | R-T Data | ERTS1202B102C |
| 10,000 | 0.12 | ±0.30°C | F 0.3 | -50 to +150°C | Solder Plated | Drawing | R-T Data | ERTS1202B103A |
