Thermistors & Thermistor Probes
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

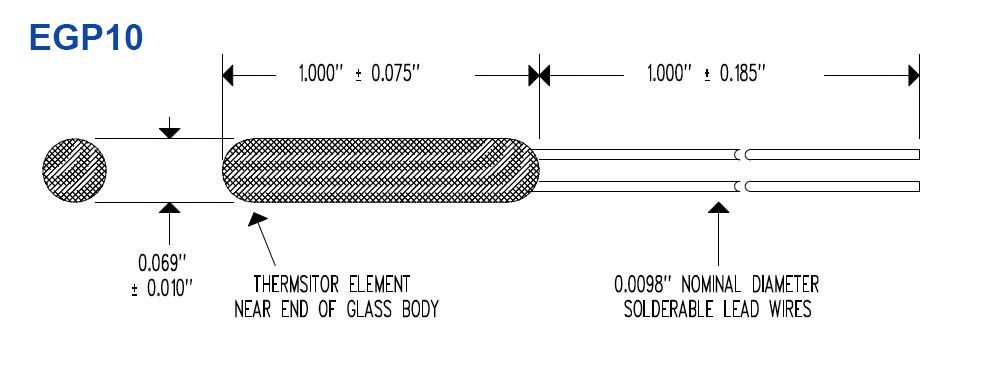

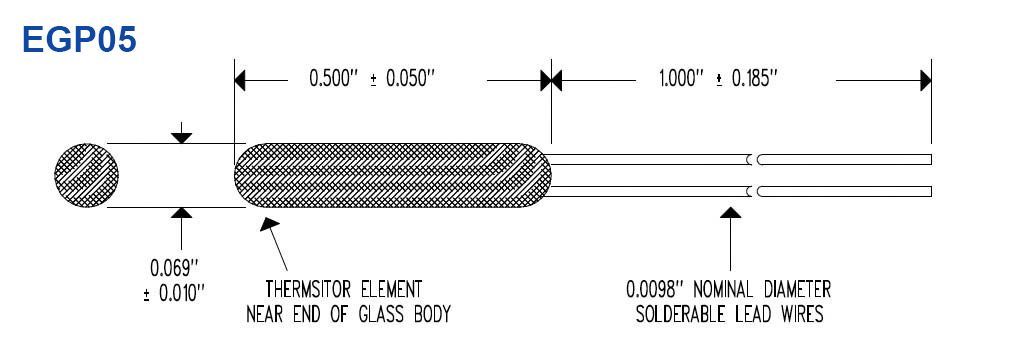

EGP Glass Probe, Radial Leads
EI Sensor’s glass probe thermistors are available in two body lengths and offer superior long-term stability and reliability. These rugged temperature sensors are small in size resulting in a very fast thermal time response. Utilized in applications including fluid flow and fluid level measurement, their glass body makes them suitable for harsh environments and corrosive atmospheres for temperature measurement throughout many different industries.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- High temperature capability to +300°C
- Fast thermal response time
- Excellent long-term stability
- Non-standard resistance values and tolerances
ready to buy? find a distributor
PRODUCT SPECS
Our stocking distributors:
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) (0-50°C) | Glass Body Length | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|---|
| 1,000 | 5 | 15 | 3262 | 0.500" | Drawing | R-T Data | EGP0515J102 | |
| 1,000 | 5 | 15 | 3262 | 1.000" | Drawing | R-T Data | EGP1015J102 | |
| 2,000 | 5 | 18 | 3417 | 0.500" | Drawing | R-T Data | EGP0518J202 | |
| 2,000 | 5 | 18 | 3417 | 1.000" | Drawing | R-T Data | EGP1018J202 | |
| 3,000 | 5 | 18 | 3417 | 0.500" | Drawing | R-T Data | EGP0518J302 | |
| 3,000 | 5 | 18 | 3417 | 1.000" | Drawing | R-T Data | EGP1018J302 | |
| 5,000 | 5 | 18 | 3417 | 0.500" | Drawing | R-T Data | EGP0518J502 | |
| 5,000 | 5 | 18 | 3417 | 1.000" | Drawing | R-T Data | EGP1018J502 | |
| 10,000 | 5 | 30 | 3892 | 0.500" | Drawing | R-T Data | X | EGP0530J103 |
| 10,000 | 5 | 30 | 3892 | 1.000" | Drawing | R-T Data | X | EGP1030J103 |
| 15,000 | 5 | 30 | 3892 | 0.500" | Drawing | R-T Data | EGP0530J153 | |
| 15,000 | 5 | 30 | 3892 | 1.000" | Drawing | R-T Data | EGP1030J153 | |
| 20,000 | 5 | 30 | 3892 | 0.500" | Drawing | R-T Data | EGP0530J203 | |
| 20,000 | 5 | 30 | 3892 | 1.000" | Drawing | R-T Data | EGP1030J203 | |
| 30,000 | 5 | 30 | 3892 | 0.500" | Drawing | R-T Data | EGP0530J303 | |
| 30,000 | 5 | 30 | 3892 | 1.000" | Drawing | R-T Data | EGP1030J303 | |
| 50,000 | 5 | 30 | 3892 | 0.500" | Drawing | R-T Data | EGP0530J503 | |
| 50,000 | 5 | 30 | 3892 | 1.000" | Drawing | R-T Data | EGP1030J503 | |
| 100,000 | 5 | 54 | 4142 | 0.500" | Drawing | R-T Data | X | EGP0554J104 |
| 100,000 | 5 | 54 | 4142 | 1.000" | Drawing | R-T Data | X | EGP1054J104 |
| 200,000 | 5 | 54 | 4142 | 0.500" | Drawing | R-T Data | EGP0554J204 | |
| 200,000 | 5 | 54 | 4142 | 1.000" | Drawing | R-T Data | EGP1054J204 | |
| 500,000 | 5 | 67 | 4303 | 0.500" | Drawing | R-T Data | EGP0567J504 | |
| 500,000 | 5 | 67 | 4303 | 1.000" | Drawing | R-T Data | EGP1067J504 |
