EGR Glass Coated Chips with Radial Leads
Available in five diameters, EI Sensor’s glass coated chip thermistors with radial leads are capable of withstanding temperatures up to 300°C and feature a very fast thermal time response. Similar to our EGP Glass Probe series, the glass thermistor body results in a rugged sensor which can be used in harsh environments. Heating and cooling devices, appliances and various industrial applications are just some of the many places the glass coated chip thermistors are used.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- High temperature capability up to +300°C
- Non-standard resistance values and tolerances
- Excellent long-term stability
- Fast thermal response time
ready to buy? find a distributor
PRODUCT SPECS

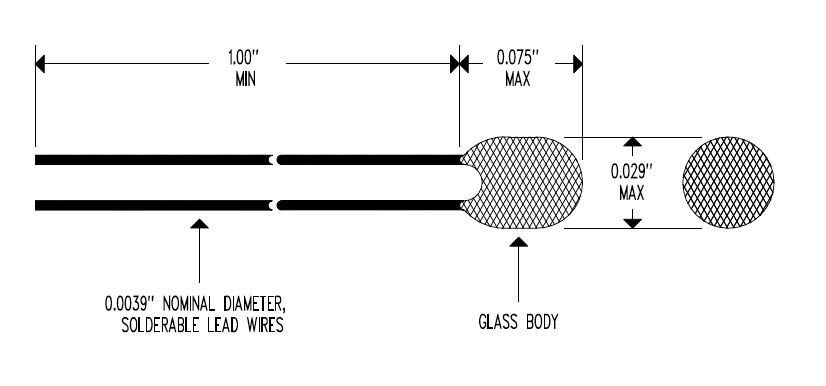

EGR29 0.029" Diameter

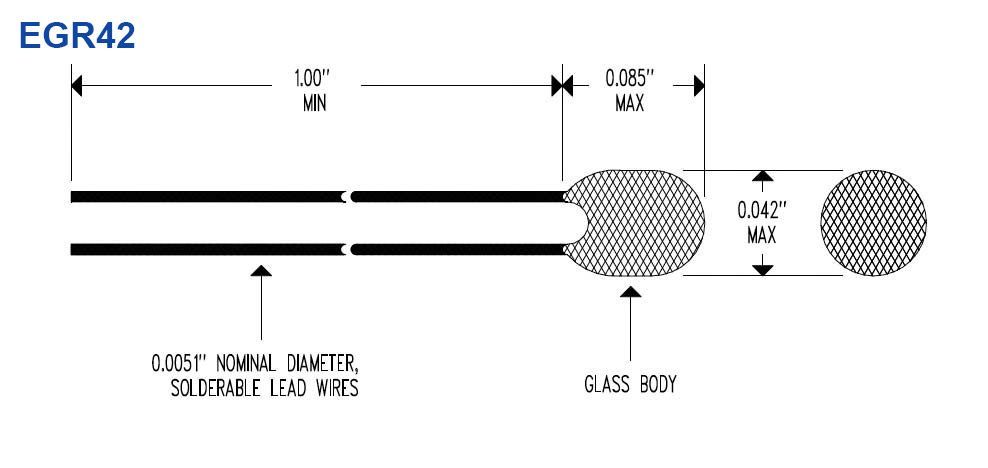

EGR42 0.042″ Diameter

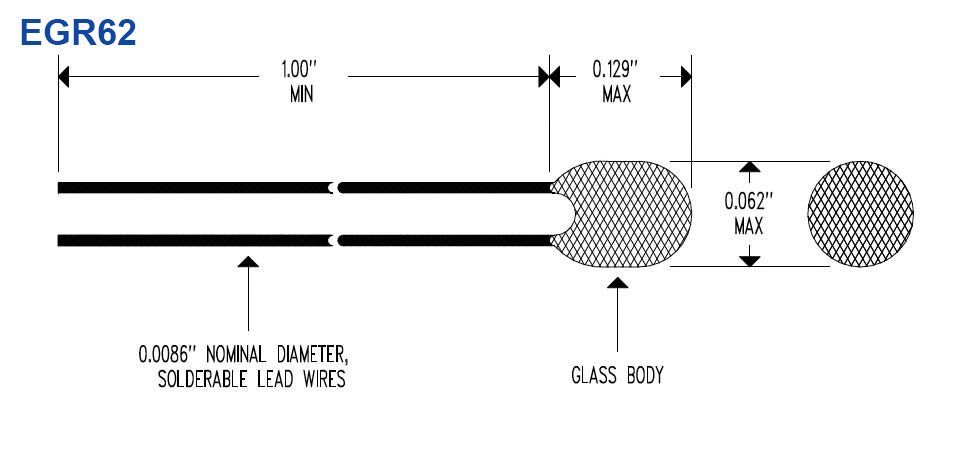

EGR62 0.062″ Diameter

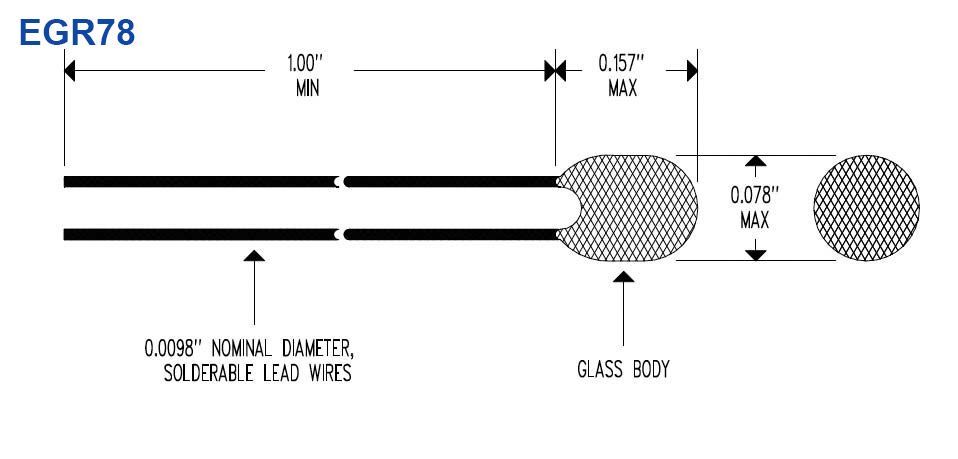

EGR78 0.078″ Diameter

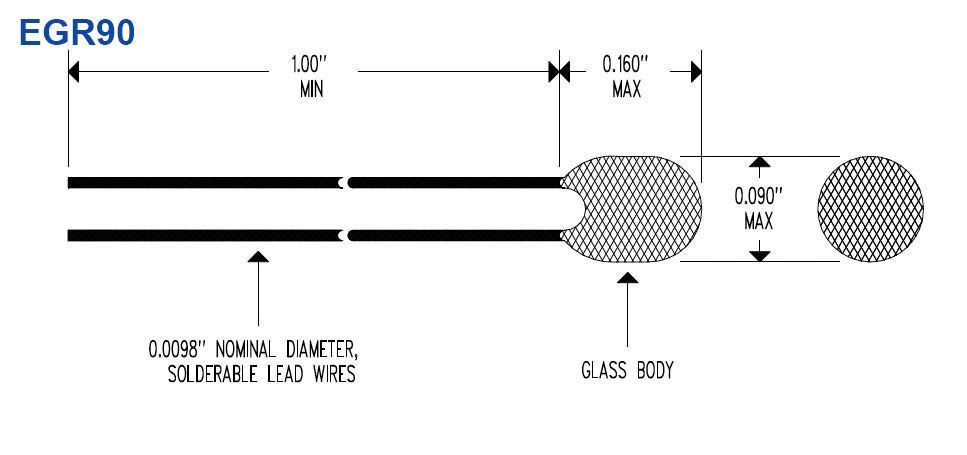

EGR90 0.090″ Diameter
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 500 | 5 | 6 | 2952 | Drawing | R-T Data | EGR4206J501 | |
| 1,000 | 5 | 6 | 2952 | Drawing | R-T Data | EGR4206J102 | |
| 1,000 | 10 | 6 | 2952 | Drawing | R-T Data | EGR4206K102 | |
| 1,000 | 5 | 15 | 3262 | Drawing | R-T Data | EGR4215J102 | |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR4218J202 | |
| 3,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR4218J302 | |
| 5,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR4218J502 | |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | EGR4217J103 | |
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | X | EGR4221J103 |
| 10,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | EGR4230F103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | EGR4230J103 |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR4230J153 | |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR4230J203 | |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR4230J303 | |
| 47,000 | 5 | 42 | 3988 | Drawing | R-T Data | EGR4242J473 | |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR4230J503 | |
| 100,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | EGR4230J104 |
| 100,000 | 1 | 36 | 3908 | Drawing | R-T Data | EGR4236F104 | |
| 100,000 | 10 | 36 | 3908 | Drawing | R-T Data | EGR4236K104 | |
| 100,000 | 5 | 42 | 3988 | Drawing | R-T Data | EGR4242J104 | |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | EGR4254J104 | |
| 200,000 | 5 | 54 | 4142 | Drawing | R-T Data | EGR4254J204 | |
| 500,000 | 5 | 67 | 4303 | Drawing | R-T Data | EGR4267J504 | |
| 1,000,000 | 5 | 67 | 4303 | Drawing | R-T Data | X | EGR4267J105 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 500 | 5 | 6 | 2952 | Drawing | R-T Data | EGR6206J501 | |
| 1,000 | 5 | 6 | 2952 | Drawing | R-T Data | EGR6206J102 | |
| 1,000 | 5 | 15 | 3262 | Drawing | R-T Data | EGR6215J102 | |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR6218J202 | |
| 3,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR6218J302 | |
| 5,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR6218J502 | |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | X | EGR6221J103 |
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | EGR6221J103 | |
| 10,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | EGR6230F103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | EGR6230J103 |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR6230J153 | |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR6230J203 | |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR6230J303 | |
| 47,000 | 5 | 42 | 3988 | Drawing | R-T Data | EGR6242J473 | |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR6230J503 | |
| 100,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | EGR6230J104 |
| 100,000 | 5 | 42 | 3988 | Drawing | R-T Data | EGR6242J104 | |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | EGR6254J104 | |
| 100,000 | 10 | 54 | 4142 | Drawing | R-T Data | EGR6254K104 | |
| 200,000 | 5 | 54 | 4142 | Drawing | R-T Data | EGR6254J204 | |
| 500,000 | 5 | 67 | 4303 | Drawing | R-T Data | EGR6267J504 | |
| 1,000,000 | 5 | 67 | 4303 | Drawing | R-T Data | X | EGR6267J105 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 500 | 5 | 6 | 2952 | Drawing | R-T Data | EGR7806J501 |
| 1,000 | 5 | 6 | 2952 | Drawing | R-T Data | EGR7806J102 |
| 1,000 | 5 | 15 | 3262 | Drawing | R-T Data | EGR7815J102 |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR7818J202 |
| 3,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR7818J302 |
| 5,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR7818J502 |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | EGR7817J103 |
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | EGR7821J103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR7830J103 |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR7830J153 |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR7830J203 |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR7830J303 |
| 47,000 | 5 | 42 | 3988 | Drawing | R-T Data | EGR7842J473 |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR7830J503 |
| 100,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR7830J104 |
| 100,000 | 5 | 42 | 3988 | Drawing | R-T Data | EGR7842J104 |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | EGR7854J104 |
| 200,000 | 5 | 54 | 4142 | Drawing | R-T Data | EGR7854J204 |
| 500,000 | 5 | 67 | 4303 | Drawing | R-T Data | EGR7867J504 |
| 1,000,000 | 5 | 67 | 4303 | Drawing | R-T Data | EGR7867J105 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 500 | 5 | 6 | 2952 | Drawing | R-T Data | EGR9006J501 |
| 1,000 | 5 | 6 | 2952 | Drawing | R-T Data | EGR9006J102 |
| 1,000 | 5 | 15 | 3262 | Drawing | R-T Data | EGR9015J102 |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR9018J202 |
| 3,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR9018J302 |
| 5,000 | 5 | 18 | 3417 | Drawing | R-T Data | EGR9018J502 |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | EGR9017J103 |
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | EGR9021J103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR9030J103 |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR9030J153 |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR9030J203 |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR9030J203 |
| 47,000 | 5 | 42 | 3988 | Drawing | R-T Data | EGR9042J473 |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR9030J503 |
| 100,000 | 5 | 30 | 3892 | Drawing | R-T Data | EGR9030J104 |
| 100,000 | 5 | 42 | 3988 | Drawing | R-T Data | EGR9042J104 |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | EGR9054J104 |
| 100,000 | 10 | 54 | 4142 | Drawing | R-T Data | EGR9054K104 |
| 200,000 | 5 | 54 | 4142 | Drawing | R-T Data | EGR9054J204 |
| 500,000 | 5 | 67 | 4303 | Drawing | R-T Data | EGR9067J504 |
| 1,000,000 | 5 | 67 | 4303 | Drawing | R-T Data | EGR9067J105 |
