Thermistors & Thermistor Probes
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

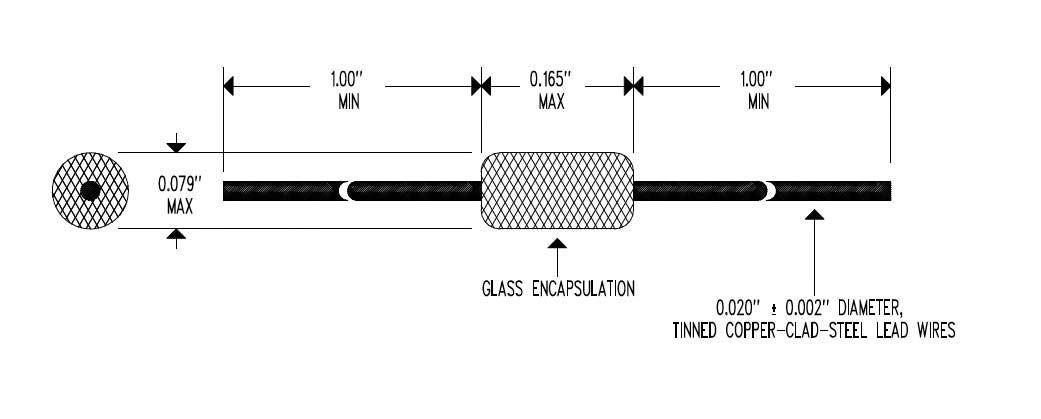

ED35 Series DO-35 Standard Glass Encapsulated Thermistors
EI Sensor’s DO-35 glass encapsulated thermistors offer customers a versatile temperature sensor that boasts a low cost with a high temperature capability. With an operating temperature range from -55°C to +300°C and excellent long-term stability, the sensors are ideally suited for severe environmental or thermal conditions. Industries such as Building Automation, Industrial Controls, Appliances and Food Processing and Handling utilize this sensor for many temperature measurement and control applications.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- High temperature capability to +300°C
- Hermetically sealed glass package
- Low cost
- Excellent long-term stability
- Non-standard resistance values and tolerances
- Tape and reel packaging available
Other Package Sizes (NTC Thermistors):
ready to buy? find a distributor
PRODUCT SPECS
500 Ω - 2,800 Ω
2,800 Ω - 10,000 Ω
10,000 Ω - 47,000 Ω
47,000 Ω - 230,000 Ω
230,000 Ω - 5,000,000 Ω
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 500 | 2 | 6 | 2952 | Drawing | R-T Data | ED3506G501 | |
| 500 | 5 | 6 | 2952 | Drawing | R-T Data | ED3506J501 | |
| 500 | 10 | 6 | 2952 | Drawing | R-T Data | ED3506K501 | |
| 700 | 1 | 15 | 3262 | Drawing | R-T Data | ED3515F701 | |
| 700 | 5 | 15 | 3262 | Drawing | R-T Data | ED3515J701 | |
| 820 | 1 | 15 | 3262 | Drawing | R-T Data | ED3515F821 | |
| 820 | 5 | 15 | 3262 | Drawing | R-T Data | ED3515J821 | |
| 1,000 | 2 | 6 | 2952 | Drawing | R-T Data | ED3506G102 | |
| 1,000 | 5 | 6 | 2952 | Drawing | R-T Data | X | ED3515F102 |
| 1,000 | 10 | 6 | 2952 | Drawing | R-T Data | ED3506K102 | |
| 1,000 | 1 | 15 | 3262 | Drawing | R-T Data | ED3515F102 | |
| 1,000 | 5 | 15 | 3262 | Drawing | R-T Data | ED3515J102 | |
| 1,200 | 1 | 15 | 3262 | Drawing | R-T Data | ED3515F122 | |
| 1,200 | 5 | 15 | 3262 | Drawing | R-T Data | ED3515J122 | |
| 1,800 | 5 | 17 | 3320 | Drawing | R-T Data | ED3517J182 | |
| 1,800 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F182 | |
| 1,800 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J182 | |
| 2,000 | 5 | 6 | 2952 | Drawing | R-T Data | ED3506J202 | |
| 2,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F202 | |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | X | ED3518J202 |
| 2,000 | 10 | 18 | 3417 | Drawing | R-T Data | ED3518K202 | |
| 2,186 | 1 | 17 | 3320 | Drawing | R-T Data | ED3517F222 | |
| 2,186 | 5 | 17 | 3320 | Drawing | R-T Data | ED3517J222 | |
| 2,500 | 2 | 6 | 2952 | Drawing | R-T Data | ED3506G252 | |
| 2,500 | 5 | 6 | 2952 | Drawing | R-T Data | ED3506J252 | |
| 2,500 | 10 | 6 | 2952 | Drawing | R-T Data | ED3506K252 | |
| 2,500 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F252 | |
| 2,500 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J252 | |
| 2,800 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F282 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 2,800 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J282 | |
| 3,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F302 | |
| 3,000 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J302 | |
| 3,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F302 | |
| 3,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J302 | |
| 3,300 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F332 | |
| 3,300 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J332 | |
| 4,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F402 | |
| 4,000 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J402 | |
| 5,000 | 1 | 17 | 3320 | Drawing | R-T Data | ED3517F502 | |
| 5,000 | 5 | 17 | 3320 | Drawing | R-T Data | ED3517J502 | |
| 5,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F502 | |
| 5,000 | 5 | 18 | 3417 | Drawing | R-T Data | X | ED3518J502 |
| 5,000 | 1 | 21 | 3575 | Drawing | R-T Data | ED3521F502 | |
| 5,000 | 5 | 21 | 3575 | Drawing | R-T Data | ED3521J502 | |
| 5,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F502 | |
| 5,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J502 | |
| 6,800 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F682 | |
| 6,800 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J682 | |
| 8,200 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F822 | |
| 8,200 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J822 | |
| 10,000 | 1 | 17 | 3320 | Drawing | R-T Data | ED3517F103 | |
| 10,000 | 2 | 17 | 3320 | Drawing | R-T Data | ED3517G103 | |
| 10,000 | 3 | 17 | 3320 | Drawing | R-T Data | ED3517H103 | |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | ED3517J103 | |
| 10,000 | 10 | 17 | 3320 | Drawing | R-T Data | ED3517K103 | |
| 10,000 | 1 | 18 | 3417 | Drawing | R-T Data | ED3518F103 | |
| 10,000 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J103 | |
| 10,000 | 1 | 21 | 3575 | Drawing | R-T Data | ED3506G501 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | ED3521J103 | |
| 10,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | ED3530F103 |
| 10,000 | 2 | 30 | 3892 | Drawing | R-T Data | X | ED3530G103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | ED3530J103 |
| 10,000 | 10 | 30 | 3892 | Drawing | R-T Data | X | ED3530K103 |
| 12,000 | 1 | 21 | 3575 | Drawing | R-T Data | ED3521F123 | |
| 12,000 | 5 | 21 | 3575 | Drawing | R-T Data | ED3521J123 | |
| 12,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F123 | |
| 12,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J123 | |
| 15,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F153 | |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J153 | |
| 15,000 | 10 | 30 | 3892 | Drawing | R-T Data | X | ED3530K153 |
| 20,000 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J203 | |
| 20,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F203 | |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | ED3530J203 |
| 20,000 | 10 | 30 | 3892 | Drawing | R-T Data | ED3530K203 | |
| 25,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | ED3530F253 |
| 25,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J253 | |
| 25,000 | 10 | 30 | 3892 | Drawing | R-T Data | X | ED3530K253 |
| 30,000 | 5 | 18 | 3417 | Drawing | R-T Data | ED3518J303 | |
| 30,000 | 1 | 24 | 3811 | Drawing | R-T Data | ED3524F303 | |
| 30,000 | 5 | 24 | 3811 | Drawing | R-T Data | ED3524J303 | |
| 30,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | ED3530F303 |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | ED3530J303 |
| 33,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J333 | |
| 40,000 | 1 | 21 | 3575 | Drawing | R-T Data | ED3521F403 | |
| 40,000 | 5 | 21 | 3575 | Drawing | R-T Data | ED3521J403 | |
| 47,000 | 5 | 21 | 3575 | Drawing | R-T Data | ED3521J473 | |
| 47,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F473 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 47,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J473 | |
| 50,000 | 1 | 21 | 3575 | Drawing | R-T Data | ED3521F503 | |
| 50,000 | 5 | 21 | 3575 | Drawing | R-T Data | ED3521J503 | |
| 50,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | ED3530F503 |
| 50,000 | 2 | 30 | 3892 | Drawing | R-T Data | ED3530G503 | |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | ED3530J503 |
| 50,000 | 10 | 30 | 3892 | Drawing | R-T Data | X | ED3530K503 |
| 68,000 | 1 | 42 | 3988 | Drawing | R-T Data | ED3542F683 | |
| 68,000 | 5 | 42 | 3988 | Drawing | R-T Data | ED3542J683 | |
| 75,000 | 1 | 30 | 3892 | Drawing | R-T Data | ED3530F753 | |
| 75,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J753 | |
| 100,000 | 1 | 21 | 3575 | Drawing | R-T Data | ED3521F104 | |
| 100,000 | 5 | 21 | 3575 | Drawing | R-T Data | ED3521J104 | |
| 100,000 | 5 | 24 | 3811 | Drawing | R-T Data | ED3524J104 | |
| 100,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | ED3530F104 |
| 100,000 | 3 | 30 | 3892 | Drawing | R-T Data | X | ED3530H104 |
| 100,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | ED3530J104 |
| 100,000 | 10 | 30 | 3892 | Drawing | R-T Data | ED3530K103 | |
| 100,000 | 1 | 42 | 3988 | Drawing | R-T Data | ED3542F104 | |
| 100,000 | 5 | 42 | 3988 | Drawing | R-T Data | ED3542J104 | |
| 100,000 | 1 | 54 | 4142 | Drawing | R-T Data | ED3554F104 | |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | X | ED3554J104 |
| 120,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J124 | |
| 150,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J154 | |
| 200,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J204 | |
| 200,000 | 10 | 30 | 3892 | Drawing | R-T Data | X | ED3530K204 |
| 200,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3554J204 | |
| 220,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J224 | |
| 230,000 | 1 | 54 | 4142 | Drawing | R-T Data | ED3554F234 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 230,000 | 2 | 54 | 4142 | Drawing | R-T Data | X | ED3554G234 |
| 230,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3554J234 | |
| 250,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | ED3530J254 |
| 250,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3554J254 | |
| 300,000 | 5 | 30 | 3892 | Drawing | R-T Data | ED3530J304 | |
| 330,000 | 1 | 54 | 4142 | Drawing | R-T Data | ED3554F334 | |
| 330,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3554J334 | |
| 500,000 | 1 | 54 | 4142 | Drawing | R-T Data | ED3554F504 | |
| 500,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3554J504 | |
| 1,000,000 | 1 | 54 | 4142 | Drawing | R-T Data | ED3554F105 | |
| 1,000,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3554J105 | |
| 1,000,000 | 5 | 68 | 4367 | Drawing | R-T Data | ED3568J105 | |
| 1,500,000 | 5 | 68 | 4367 | Drawing | R-T Data | ED3568J155 | |
| 2,000,000 | 5 | 54 | 4142 | Drawing | R-T Data | ED3554J205 | |
| 3,700,000 | 10 | 74 | 4543 | Drawing | R-T Data | ED3574K375 | |
| 5,000,000 | 10 | 74 | 4543 | Drawing | R-T Data | ED3574K505 |
