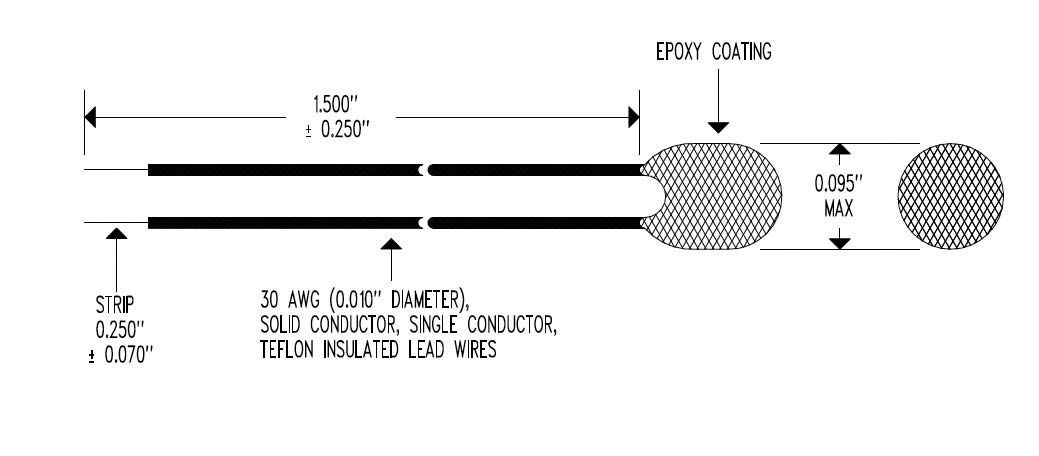

ETL Series Epoxy Coated NTC Thermistors, Teflon Insulated Leads
An alternative to our EBL and EKL series, the EI Sensor ETL thermistor series boasts a Teflon insulated lead wire allowing operation up to 150°C. This multipurpose temperature sensor is available with non-standard resistance values and tolerances and is used for temperature measurement and control through many industries including HAVC, White Goods and Industrial Controls.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
ready to buy? find a distributor
PRODUCT SPECS
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 1,000 | 5 | 18 | 3417 | Drawing | R-T Data | ETL18J102 |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | ETL18J202 |
| 2,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J202 |
| 2,252 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J222 |
| 2,500 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J252 |
| 3,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J302 |
| 4,700 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J472 |
| 5,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J502 |
| 6,800 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J682 |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | ETL17J103 |
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | ETL21J103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J103 |
| 12,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J123 |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J153 |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J203 |
| 25,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J253 |
| 30,000 | 5 | 24 | 3811 | Drawing | R-T Data | ETL24J303 |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J303 |
| 30,000 | 5 | 54 | 4142 | Drawing | R-T Data | ETL54J303 |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J503 |
| 50,000 | 5 | 54 | 4142 | Drawing | R-T Data | ETL54J503 |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | ETL30J104 |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | ETL54J104 |
