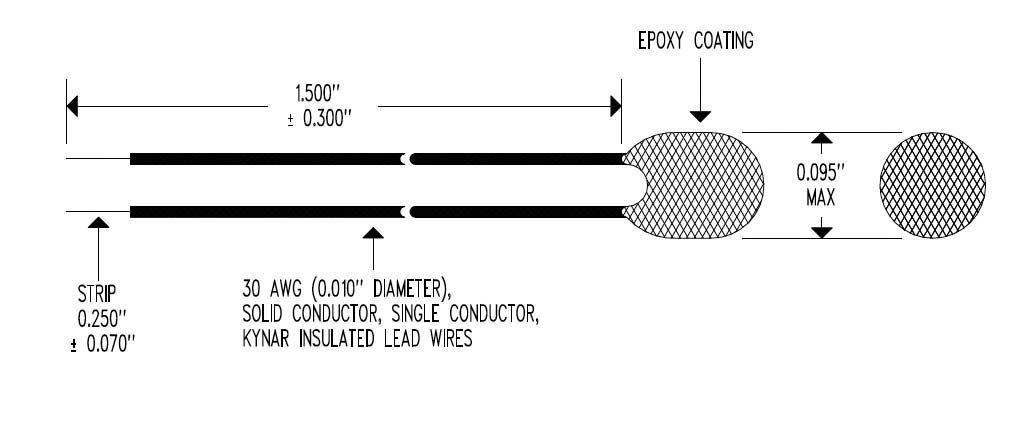

EPT2 Precision Interchangeable, Epoxy Coated, Kynar Insulated Leads
Similar to their counterpart EPT1 Series, these temperature sensors are available with accuracies of ±0.2°C, ±0.5°C and ±1.0°C over a temperature range of 0 to +70°C. They offer a Kynar insulated lead wire and can operate up to +135°C. This versatile sensor is used throughout many industries such as Medical, HVAC, Building Automation and Industrial Controls.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
ready to buy? find a distributor
PRODUCT SPECS
2,252 Ω - 50,000 Ω
50,000 Ω - 100,000 Ω
| Resistance Ohms @25°C | Accuracy (0 to +70°C) | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 2,252 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | EPT230R222 | |
| 2,252 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT230S222 | |
| 2,252 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT230T222 | |
| 3,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | EPT230R302 | |
| 3,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT230S302 | |
| 3,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT230T302 | |
| 5,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | X | EPT230T502 |
| 5,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | X | EPT230S502 |
| 5,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT230T502 | |
| 10,000 | ±0.2°C | 21A | 3575 | Drawing | R-T Data | X | EPT221R103 |
| 10,000 | ±0.5°C | 21A | 3575 | Drawing | R-T Data | X | EPT221S103 |
| 10,000 | ±1.0°C | 21A | 3575 | Drawing | R-T Data | X | EPT221T103 |
| 10,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | X | EPT230R103 |
| 10,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | X | EPT230S103 |
| 10,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | X | EPT230T103 |
| 20,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | EPT230R203 | |
| 20,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT230S203 | |
| 20,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT230T203 | |
| 30,000 | ±0.2°C | 24A | 3811 | Drawing | R-T Data | EPT224R303 | |
| 30,000 | ±0.5°C | 24A | 3811 | Drawing | R-T Data | EPT224S303 | |
| 30,000 | ±1.0°C | 24A | 3811 | Drawing | R-T Data | EPT224T303 | |
| 30,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | X | EPT230R303 |
| 30,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | X | EPT230S303 |
| 30,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | X | EPT230T303 |
| 30,000 | ±0.2°C | 54A | 4142 | Drawing | R-T Data | EPT254R303 | |
| 30,000 | ±0.5°C | 54A | 4142 | Drawing | R-T Data | EPT254S303 | |
| 30,000 | ±1.0°C | 54A | 4142 | Drawing | R-T Data | EPT254T303 | |
| 50,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | EPT230R503 | |
| 50,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT230S503 |
| Resistance Ohms @25°C | Accuracy (0 to +70°C) | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 50,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT230T503 | |
| 50,000 | ±0.2°C | 54A | 4142 | Drawing | R-T Data | EPT254R503 | |
| 50,000 | ±0.5°C | 54A | 4142 | Drawing | R-T Data | EPT254S503 | |
| 50,000 | ±1.0°C | 54A | 4142 | Drawing | R-T Data | EPT254T503 | |
| 100,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | EPT230R104 | |
| 100,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT230S104 | |
| 100,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT230T104 | |
| 100,000 | ±0.2°C | 54A | 4142 | Drawing | R-T Data | EPT254R104 | |
| 100,000 | ±0.5°C | 54A | 4142 | Drawing | R-T Data | EPT254S104 | |
| 100,000 | ±1.0°C | 54A | 4142 | Drawing | R-T Data | EPT254T104 |
