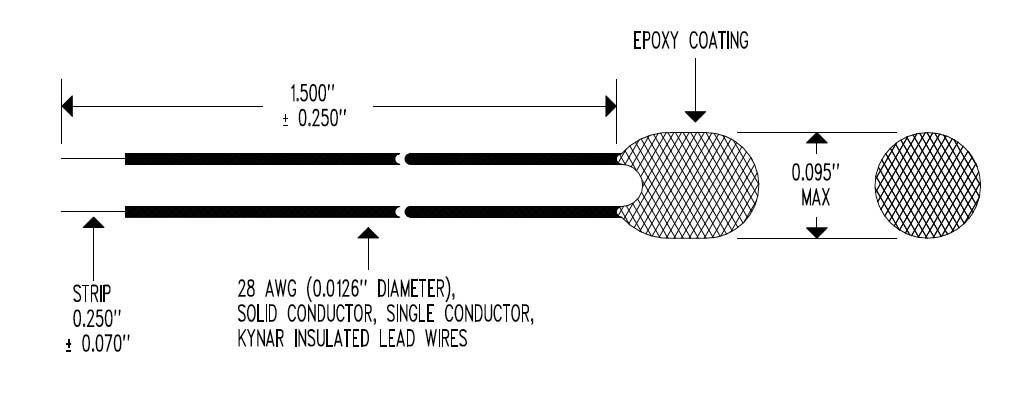

EKL Series Epoxy Coated NTC Thermistors, Kynar Insulated Leads
Similar to our EBL Series, EI Sensor’s EKL series temperature sensing thermistors are available with a wide range of resistance values and tolerances ranging from ±1% to ±10% as well as point matched options. The EKL thermistors are built with Kynar insulated lead wire and are capable of withstanding temperatures up to 135°C. Low cost and highly stable devices make this sensor an excellent choice for temperature measurement, control and compensation applications.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
ready to buy? find a distributor
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
PRODUCT SPECS
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 1,000 | 5 | 18 | 3417 | Drawing | R-T Data | EKL18J102 |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | EKL18J202 |
| 2,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J202 |
| 2,252 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J222 |
| 2,500 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J252 |
| 3,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J302 |
| 4,700 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J472 |
| 5,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J502 |
| 6,800 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J682 |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | EKL17J103 |
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | EKL21J103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J103 |
| 12,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J123 |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J153 |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J203 |
| 25,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J253 |
| 30,000 | 5 | 24 | 3811 | Drawing | R-T Data | EKL24J303 |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J303 |
| 30,000 | 5 | 54 | 4142 | Drawing | R-T Data | EKL54J303 |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J503 |
| 50,000 | 5 | 54 | 4142 | Drawing | R-T Data | EKL54J503 |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | EKL30J104 |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | EKL54J104 |
