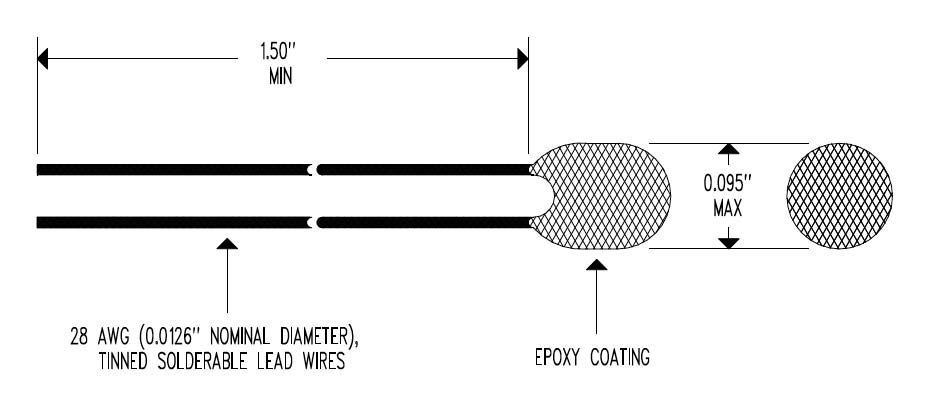

EBL Epoxy Coated Bare Leads Thermistors
EI Sensor’s EBL series products are available with a wide range of resistance values and tolerances ranging from ±1% to ±10% as well as point matched options. We have the ability to customize these sensors with special lead materials and lengths while still maintaining their low cost and long term reliability. An excellent choice for many temperature measurement and compensation applications.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
ready to buy? find a distributor
PRODUCT SPECS
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 1,000 | 5 | 18 | 3417 | Drawing | R-T Data | EBL18J102 | |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | EBL18J202 | |
| 2,000 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J202 | |
| 2,252 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J222 | |
| 2,500 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J252 | |
| 3,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | EBL30J302 |
| 4,700 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J472 | |
| 5,000 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J502 | |
| 6,800 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J682 | |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | EBL17J103 | |
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | EBL21J103 | |
| 10,000 | 2 | 30 | 3892 | Drawing | R-T Data | X | EBL30G103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | EBL30J103 |
| 12,000 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J123 | |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J153 | |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J203 | |
| 25,000 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J253 | |
| 30,000 | 5 | 24 | 3811 | Drawing | R-T Data | EBL24J303 | |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | X | EBL30J303 |
| 30,000 | 5 | 54 | 4142 | Drawing | R-T Data | EBL54J303 | |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J503 | |
| 50,000 | 5 | 54 | 4142 | Drawing | R-T Data | EBL54J503 | |
| 100,000 | 5 | 30 | 3892 | Drawing | R-T Data | EBL30J104 | |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | EBL54J104 |
