Thermistors & Thermistor Probes

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

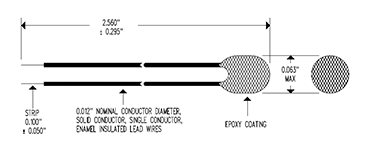

EPLB Series Epoxy Coated NTC Thermistors, Enamel Insulated Lead Wires

The EPLB series of epoxy coated thermistors combines a fast thermal response with a low cost. Boasting a ±1% tolerance at 25°C, the product has enamel insulated lead wires and can operate up to +100°C. The small overall diameter makes the product adaptable to many packaging design requirements throughout industries such as Medical and Healthcare, Consumer Electronics and HVAC-R.

NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves  the right to change product images at any time without notice.

Features

  • Rated up to +100°C
  • Low cost
  • Solid conductor leads
  • Fast thermal response

Visit our other Epoxy Coated styles:

ready to buy? find a distributor

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

PRODUCT SPECS

Resistance Ohms @25°C Resistance Tol. ± % Beta (K) 25-50°C Download View Dist. Stocked Part Number
10,000 1 3,380 Drawing R-T Data X EPLB17F103
10,000 1 3,950 Drawing R-T Data X EPLB32F103
50,000 1 3,950 Drawing R-T Data X EPLB32F503
100,000 1 3,950 Drawing R-T Data X EPLB32F104
