Thermistors & Thermistor Probes
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

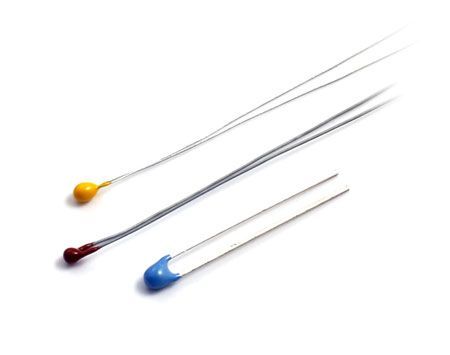

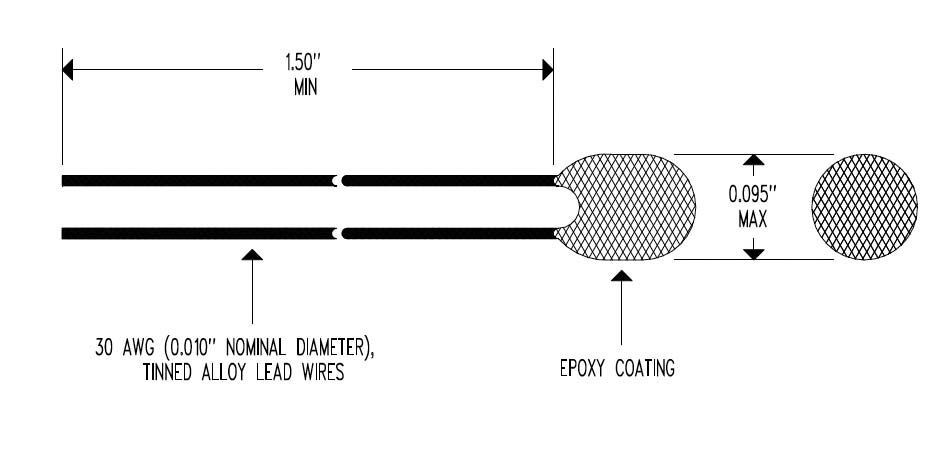

EPT1 Precision Interchangeable, Epoxy Coated, Un-Insulated Leads
Our Precision Interchangeable NTC thermistors are highly stable, very accurate temperature sensors which eliminate the burden of individual calibration. With accuracies of ±0.2°C, ±0.5°C and ±1.0°C over a temperature range of 0 to +70°C and a maximum operating temperature of 150°C, they’re widely used in applications within the HVAC, Instrumentation and Medical industries, just to name a few.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
ready to buy? find a distributor
PRODUCT SPECS
2,252 Ω - 50,000 Ω
50,000 Ω - 100,000 Ω
| Resistance Ohms @25°C | Accuracy (0 to +70°C) | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 2,252 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | X | EPT130R222 |
| 2,252 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | X | EPT130S222 |
| 2,252 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | X | EPT130T222 |
| 3,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | X | EPT130R302 |
| 3,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT130S302 | |
| 3,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT130T302 | |
| 5,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | X | EPT130R502 |
| 5,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | X | EPT130S502 |
| 5,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | X | EPT130T502 |
| 10,000 | ±0.2°C | 21A | 3575 | Drawing | R-T Data | X | EPT121R103 |
| 10,000 | ±0.5°C | 21A | 3575 | Drawing | R-T Data | EPT121S103 | |
| 10,000 | ±1.0°C | 21A | 3575 | Drawing | R-T Data | EPT121T103 | |
| 10,000 | ±0.1°C | 30A | 3892 | Drawing | R-T Data | X | EPT130Q103 |
| 10,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | X | EPT130R103 |
| 10,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | X | EPT130S103 |
| 10,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | X | EPT130T103 |
| 20,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | EPT130R203 | |
| 20,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT130S203 | |
| 20,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT130T203 | |
| 30,000 | ±0.2°C | 24A | 3811 | Drawing | R-T Data | EPT124R303 | |
| 30,000 | ±0.5°C | 24A | 3811 | Drawing | R-T Data | EPT124S303 | |
| 30,000 | ±1.0°C | 24A | 3811 | Drawing | R-T Data | EPT124T303 | |
| 30,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | X | EPT130R303 |
| 30,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | X | EPT130S303 |
| 30,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | X | EPT130T303 |
| 30,000 | ±0.2°C | 54A | 4142 | Drawing | R-T Data | EPT154R303 | |
| 30,000 | ±0.5°C | 54A | 4142 | Drawing | R-T Data | EPT154S303 | |
| 30,000 | ±1.0°C | 54A | 4142 | Drawing | R-T Data | EPT154T303 | |
| 50,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | EPT130R503 |
| Resistance Ohms @25°C | Accuracy (0 to +70°C) | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 50,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT130S503 | |
| 50,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT130T503 | |
| 50,000 | ±0.2°C | 54A | 4142 | Drawing | R-T Data | EPT154R503 | |
| 50,000 | ±0.5°C | 54A | 4142 | Drawing | R-T Data | EPT154S503 | |
| 50,000 | ±1.0°C | 54A | 4142 | Drawing | R-T Data | EPT154T503 | |
| 100,000 | ±0.2°C | 30A | 3892 | Drawing | R-T Data | EPT130R104 | |
| 100,000 | ±0.5°C | 30A | 3892 | Drawing | R-T Data | EPT130S104 | |
| 100,000 | ±1.0°C | 30A | 3892 | Drawing | R-T Data | EPT130T104 | |
| 100,000 | ±0.2°C | 54A | 4142 | Drawing | R-T Data | EPT154R104 | |
| 100,000 | ±0.5°C | 54A | 4142 | Drawing | R-T Data | EPT154S104 | |
| 100,000 | ±1.0°C | 54A | 4142 | Drawing | R-T Data | EPT154T104 |
Related Products

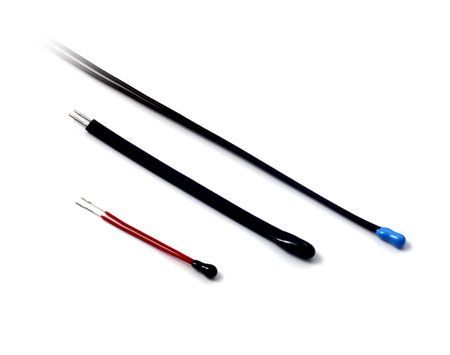

EPT2 EPOXY COATED, PRECISION INTERCHANGEABLE KYNAR LEAD WIRES

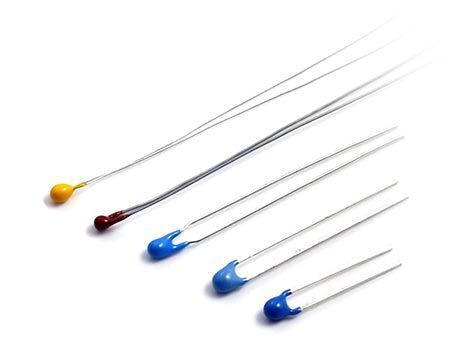

EBL EPOXY COATED, BARE LEAD WIRES

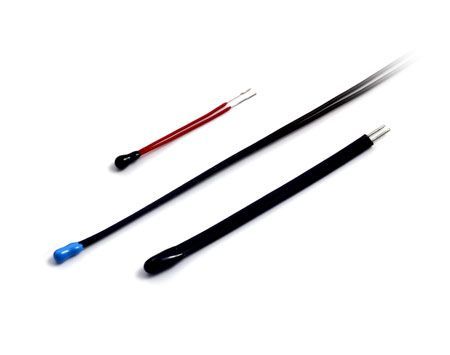

EKL EPOXY COATED, KYNAR LEAD WIRES
