EL34 Series Surface Mount LL-34 MELF Thermistors

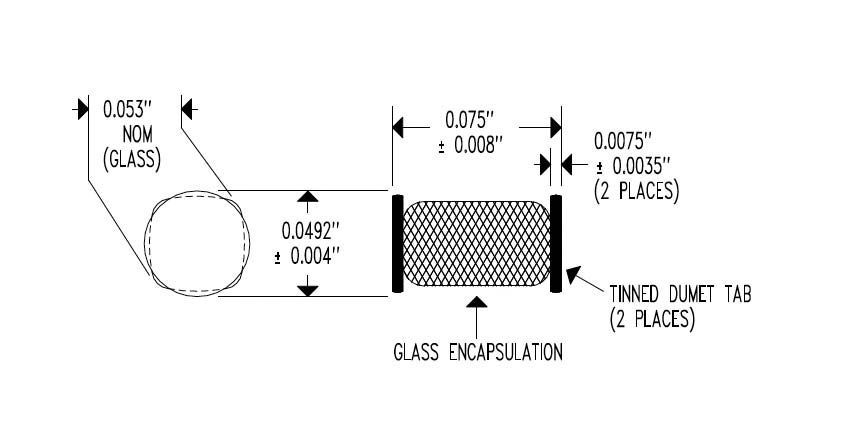

EI Sensor’s low cost LL-34 MELF NTC thermistor offers excellent long-term stability and reliability even when encountering harsh environments and temperatures up 220°C. Non-standard resistance values and tolerances are available. The product can be supplied Bulk or on Tape and Reel.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- High temperature capability up to +220°C
- Hermetically sealed glass package
- Low cost
- Excellent long-term stability
- Non-standard resistance values and tolerances
- Tape and reel packaging available
OTHER PACKAGE SIZES:
ready to buy? find a distributor
PRODUCT SPECS
500 Ω - 5,000 Ω
5,000 Ω - 30,000 Ω
30,000 Ω - 150,000 Ω
150,000 Ω - 5,000,000 Ω
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 500 | 5 | 6 | 2952 | Drawing | R-T Data | EL3406J501 | |
| 500 | 10 | 6 | 2952 | Drawing | R-T Data | X | EL3406K501 |
| 700 | 5 | 15 | 3262 | Drawing | R-T Data | EL3415J701 | |
| 820 | 5 | 15 | 3262 | Drawing | R-T Data | EL3415J821 | |
| 1,000 | 5 | 6 | 2952 | Drawing | R-T Data | EL3406J102 | |
| 1,000 | 10 | 6 | 2952 | Drawing | R-T Data | X | EL3406K102 |
| 1,000 | 1 | 15 | 3262 | Drawing | R-T Data | EL3415F102 | |
| 1,000 | 5 | 15 | 3262 | Drawing | R-T Data | EL3415J102 | |
| 1,200 | 5 | 15 | 3262 | Drawing | R-T Data | EL3415J122 | |
| 1,800 | 1 | 17 | 3320 | Drawing | R-T Data | EL3417F182 | |
| 1,800 | 5 | 17 | 3320 | Drawing | R-T Data | EL3417J182 | |
| 1,800 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J182 | |
| 2,000 | 5 | 6 | 2952 | Drawing | R-T Data | EL3406J202 | |
| 2,000 | 10 | 6 | 2952 | Drawing | R-T Data | EL3406K202 | |
| 2,000 | 1 | 18 | 3417 | Drawing | R-T Data | EL3418F202 | |
| 2,000 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J202 | |
| 2,200 | 1 | 17 | 3320 | Drawing | R-T Data | EL3417F222 | |
| 2,200 | 5 | 17 | 3320 | Drawing | R-T Data | EL3417J222 | |
| 2,500 | 5 | 6 | 2952 | Drawing | R-T Data | EL3406J252 | |
| 2,500 | 10 | 6 | 2952 | Drawing | R-T Data | EL3406K252 | |
| 2,500 | 1 | 18 | 3417 | Drawing | R-T Data | EL3418F252 | |
| 2,500 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J252 | |
| 2,800 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J282 | |
| 3,000 | 1 | 18 | 3417 | Drawing | R-T Data | EL3418F302 | |
| 3,000 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J302 | |
| 3,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J302 | |
| 3,300 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J332 | |
| 4,000 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J402 | |
| 5,000 | 5 | 17 | 3320 | Drawing | R-T Data | EL3417J502 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 5,000 | 1 | 18 | 3417 | Drawing | R-T Data | EL3418F502 | |
| 5,000 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J502 | |
| 5,000 | 10 | 18 | 3417 | Drawing | R-T Data | X | EL3418K502 |
| 5,000 | 1 | 21 | 3575 | Drawing | R-T Data | EL3421F502 | |
| 5,000 | 5 | 21 | 3575 | Drawing | R-T Data | EL3421J502 | |
| 5,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F502 | |
| 5,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J502 | |
| 6,800 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J682 | |
| 8,200 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J822 | |
| 10,000 | 1 | 17 | 3320 | Drawing | R-T Data | EL3417F103 | |
| 10,000 | 5 | 17 | 3320 | Drawing | R-T Data | EL3417J103 | |
| 10,000 | 1 | 18 | 3417 | Drawing | R-T Data | EL3418F103 | |
| 10,000 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J103 | |
| 10,000 | 1 | 21 | 3575 | Drawing | R-T Data | EL3421F103 | |
| 10,000 | 5 | 21 | 3575 | Drawing | R-T Data | EL3421J103 | |
| 10,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | EL3430F103 |
| 10,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J103 | |
| 10,000 | 10 | 30 | 3892 | Drawing | R-T Data | X | EL3430K103 |
| 12,000 | 5 | 21 | 3575 | Drawing | R-T Data | EL3421J123 | |
| 12,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J123 | |
| 15,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F153 | |
| 15,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J153 | |
| 20,000 | 1 | 18 | 3417 | Drawing | R-T Data | EL3418F203 | |
| 20,000 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J203 | |
| 20,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F203 | |
| 20,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J203 | |
| 25,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F253 | |
| 25,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J253 | |
| 30,000 | 1 | 18 | 3417 | Drawing | R-T Data | EL3418F303 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Dist. Stocked | Part Number |
|---|---|---|---|---|---|---|---|
| 30,000 | 5 | 18 | 3417 | Drawing | R-T Data | EL3418J303 | |
| 30,000 | 1 | 24 | 3811 | Drawing | R-T Data | EL3424F303 | |
| 30,000 | 5 | 24 | 3811 | Drawing | R-T Data | EL3424J303 | |
| 30,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F303 | |
| 30,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J303 | |
| 33,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F333 | |
| 33,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J333 | |
| 40,000 | 5 | 21 | 3575 | Drawing | R-T Data | EL3421J403 | |
| 47,000 | 1 | 21 | 3575 | Drawing | R-T Data | EL3421F473 | |
| 47,000 | 5 | 21 | 3575 | Drawing | R-T Data | EL3421J473 | |
| 47,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J473 | |
| 50,000 | 5 | 21 | 3575 | Drawing | R-T Data | EL3421J503 | |
| 50,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F503 | |
| 50,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J503 | |
| 68,000 | 5 | 42 | 3988 | Drawing | R-T Data | EL3442J683 | |
| 75,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J753 | |
| 100,000 | 1 | 21 | 3575 | Drawing | R-T Data | EL3421F104 | |
| 100,000 | 5 | 21 | 3575 | Drawing | R-T Data | EL3421J104 | |
| 100,000 | 1 | 24 | 3811 | Drawing | R-T Data | EL3424F104 | |
| 100,000 | 5 | 24 | 3811 | Drawing | R-T Data | EL3424J104 | |
| 100,000 | 1 | 30 | 3892 | Drawing | R-T Data | X | EL3430F104 |
| 100,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J104 | |
| 100,000 | 5 | 42 | 3988 | Drawing | R-T Data | EL3442J104 | |
| 100,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL3454F104 | |
| 100,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL3454J104 | |
| 120,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F124 | |
| 120,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J124 | |
| 150,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F154 | |
| 150,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J154 |
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 200,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F204 |
| 200,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J204 |
| 200,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL3454F204 |
| 200,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL3454J204 |
| 220,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J224 |
| 230,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL3454J234 |
| 250,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J254 |
| 250,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL3454F254 |
| 250,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL3454J254 |
| 300,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL3430F304 |
| 300,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL3430J304 |
| 330,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL3454J334 |
| 500,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL3454F504 |
| 500,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL3454J504 |
| 1,000,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL3454F105 |
| 1,000,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL3454J105 |
| 1,000,000 | 5 | 68 | 4367 | Drawing | R-T Data | EL3468J105 |
| 1,000,000 | 10 | 68 | 4367 | Drawing | R-T Data | EL3468K105 |
| 1,500,000 | 5 | 68 | 4367 | Drawing | R-T Data | EL3468J155 |
| 2,000,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL3454J205 |
| 3,700,000 | 10 | 74 | 4543 | Drawing | R-T Data | EL3474K375 |
| 5,000,000 | 10 | 74 | 4543 | Drawing | R-T Data | EL3474K505 |
