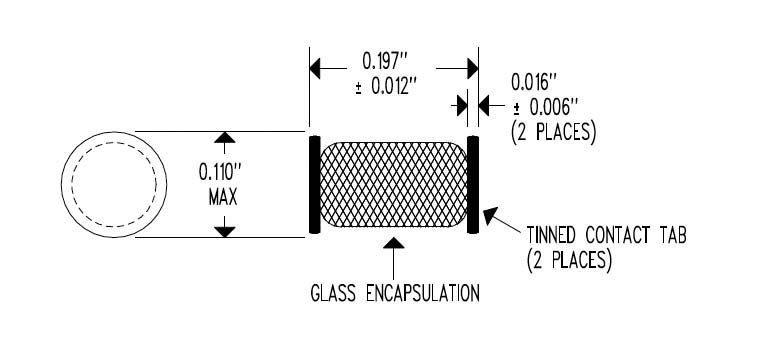

EL41 Series Surface Mount LL-41 MELF Thermistors
The LL-41 glass encapsulated MELF thermistor offers the same features as its counterparts EL34 series and EL31 series. Excellent reliability and able to withstand temperatures up to 220°C, the LL-41 temperature sensor has a larger body size for applications where space isn’t an issue. Tape and reel is available for ease of use.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- High temperature capability up to +220°C
- Hermetically sealed glass package
- Surface Mount
- Excellent long-term stability
- Tape and reel packaging available
OTHER PACKAGE SIZES:
ready to buy? find a distributor
PRODUCT SPECS
| Resistance Ohms @25°C | Resistance Tol. ± % | R-T Curve | Beta (K) 0-50°C | Download | View | Part Number |
|---|---|---|---|---|---|---|
| 100 | 5 | 6 | 2952 | Drawing | R-T Data | EL4106J101 |
| 100 | 10 | 6 | 2952 | Drawing | R-T Data | EL4106K101 |
| 250 | 5 | 6 | 2952 | Drawing | R-T Data | EL4106J251 |
| 250 | 10 | 6 | 2952 | Drawing | R-T Data | EL4106K251 |
| 500 | 1 | 18 | 3417 | Drawing | R-T Data | EL4118F501 |
| 500 | 5 | 18 | 3417 | Drawing | R-T Data | EL4118J501 |
| 1,000 | 1 | 18 | 3417 | Drawing | R-T Data | EL4118F102 |
| 1,000 | 5 | 18 | 3417 | Drawing | R-T Data | EL4118J102 |
| 2,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL4130F202 |
| 2,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL4130J202 |
| 2,252 | 1 | 30 | 3892 | Drawing | R-T Data | EL4130F222 |
| 2,252 | 5 | 30 | 3892 | Drawing | R-T Data | EL4130J222 |
| 2,500 | 1 | 30 | 3892 | Drawing | R-T Data | EL4130F252 |
| 2,500 | 5 | 30 | 3892 | Drawing | R-T Data | EL4130J252 |
| 3,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL4130F302 |
| 3,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL4130J302 |
| 5,000 | 1 | 30 | 3892 | Drawing | R-T Data | EL4130F502 |
| 5,000 | 5 | 30 | 3892 | Drawing | R-T Data | EL4130J502 |
| 10,000 | 1 | 42 | 3988 | Drawing | R-T Data | EL4142F103 |
| 10,000 | 5 | 42 | 3988 | Drawing | R-T Data | EL4142J103 |
| 10,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL4154F103 |
| 10,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL4154J103 |
| 20,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL4154F203 |
| 20,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL4154J203 |
| 30,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL4154F303 |
| 30,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL4154J303 |
| 33,000 | 1 | 54 | 4142 | Drawing | R-T Data | EL4154F333 |
| 33,000 | 5 | 54 | 4142 | Drawing | R-T Data | EL4154J333 |
