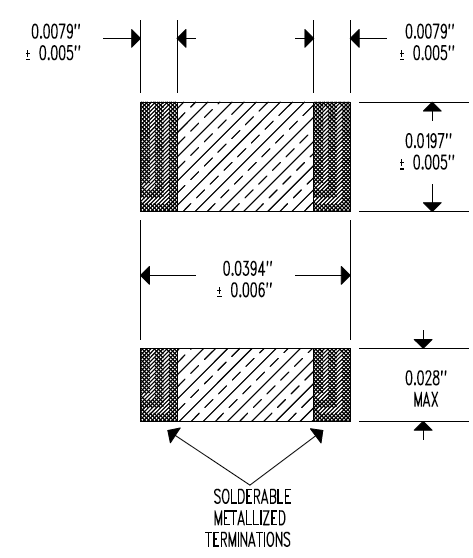

0402 End-Banded Chip Thermistors
EI Sensor’s surface mount end-banded 0402 size thermistors are intended for temperature measurement, control and compensation applications throughout many industries such as industrial, telecom and consumer electronics. Typical applications include rechargeable battery packs, TCXO’s, Gas sensor temperature compensation, LCD compensation and CPU temperature monitoring. The SMT sensors are suitable for standard soldering, epoxy and wire bond techniques. Other sizes, resistance values and tolerances are available.
NOTE: The product are shown for illustration purposes only and maybe not be an exact representation of the product. EIST reserves the right to change product images at any time without notice.
Features
- Surface mountable
- Small size
- Tape/Reel packaging
- Non-standard resistance values
- Rated to +125°C max operating temperature
OTHER PACKAGE SIZES:
ready to buy? find a distributor
PRODUCT SPECS
| Resistance Ω @ 25°C | Resistance Tol. ± % | Beta (°K) 25/85°C | Download | View | Part Number |
|---|---|---|---|---|---|
| 1,000 | 5 | 3694 | Drawing | RT-Data | E40221J102A |
| 10,000 | 5 | 3977 | Drawing | RT-Data | E40230J103 |
| 22,000 | 5 | 3977 | Drawing | RT-Data | E40230J223 |
| 47,000 | 5 | 3977 | Drawing | RT-Data | E40230J473 |
| 68,000 | 5 | 4100 | Drawing | RT-Data | E40242J683A |
| 100,000 | 5 | 4277 | Drawing | RT-Data | E40260J104A |
| 100,000 | 5 | 4360 | Drawing | RT-Data | E40266J104A |
| 220,000 | 5 | 4715 | Drawing | RT-Data | E40275J224A |
| 470,000 | 5 | 4715 | Drawing | RT-Data | E40275J474A |
